EVX12120

發布時間：2020-12-03 16:13  瀏覽：

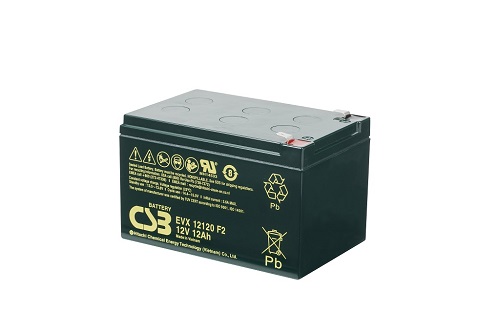

EVX12120

12 V 12.0Ah EVX 12120 is designed specially for electric vehicles, such as electric golf cart, electric wheelchair, mower, dust collector etc. It has high cycling life, high efficiency and long service life.

規格書

局?jǐn)?shù)

6

電壓值

12 V

安培數

12 Ah @ 20hr-rate to 1.75V per cell @ 25°C(77°F)

重量

Approx. 3.83kg. (8.44 lbs.)

最大放電電流5秒(A)

150A/180A (5 sec)

內阻(mΩ)

Approx. 15.4 mΩ

溫度工作范圍

Discharge：-15℃~50℃(5°F~122°F) Charge：-15℃~40℃(5°F~104°F) Storage：-15℃~40℃(5°F~104°F)

一般使用溫度工作范圍

25°C ± 3°C (77°F ± 5°F)

浮充使用充電條件

13.5 to 13.8 VDC/unit Average at 25°C ( 77°F)

建議充電最大電流

3.6A

均充使用充電條件

14.4 to 15.0 VDC/unit Average at 25°C (77°F)

自放電	It should be more than 75% of the capacity that before storage after stocked for 6 months at ambient temp. 25℃

端子	F1/F2-Faston Tab187/250

電槽組材質

ABS(UL94-HB)

---
